LLM INFERENCE · KV-CACHE QUANTIZATION

KV-Cache Quantization: I Ran the Experiments So You Don’t Have To

real KV-cache quantization on Qwen2.5-0.5B · KIVI vs KVQuant vs GEAR · wired into a vLLM serving stack

KV-cache quantization is one of the highest-leverage knobs in modern LLM inference. As context windows

stretch past 128K tokens and batch sizes climb, the Key-Value cache — not the model weights — becomes the

dominant memory consumer, quietly turning serving into a memory-bound problem. Storing that cache in 4-bit

or 2-bit cuts its footprint 4–8× with minimal quality loss, but naive rounding collapses attention rather

than compressing it.

In this deep-dive I don't take that on faith. I load a real model (Qwen2.5-0.5B), capture its actual

KV-cache activations, quantize them four different ways, and measure exactly how each scheme distorts

attention. Then I compare the three production schemes — KIVI, KVQuant, and GEAR — and show

how to wire quantization into a real serving stack (vLLM / HuggingFace).

The Goal

By the end you should be able to answer:

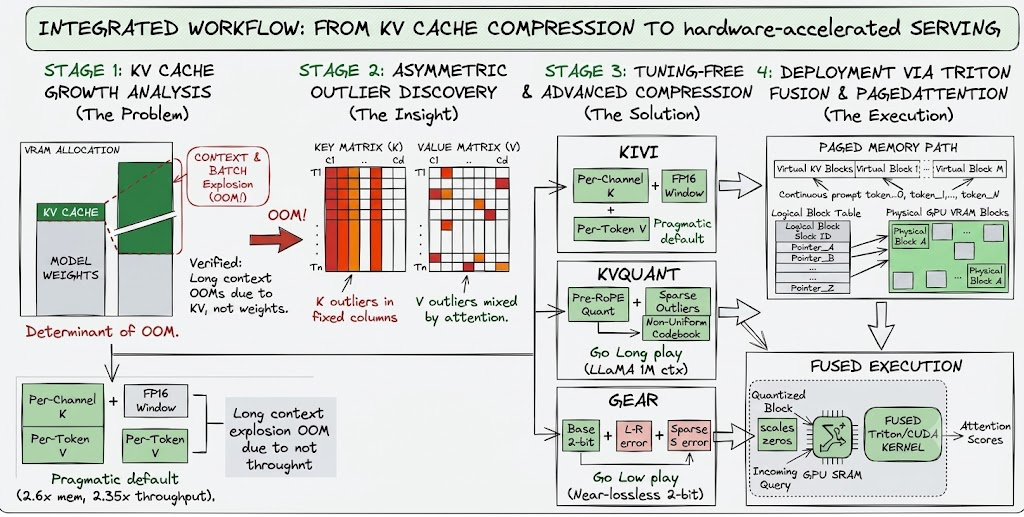

Figure 1: End-to-end KV-cache quantization workflow

Hardware & Experiment Setup

Before the theory, the actual rig the numbers below come from:

No synthetic tensors, no "trust me" — the activations are the model's own.

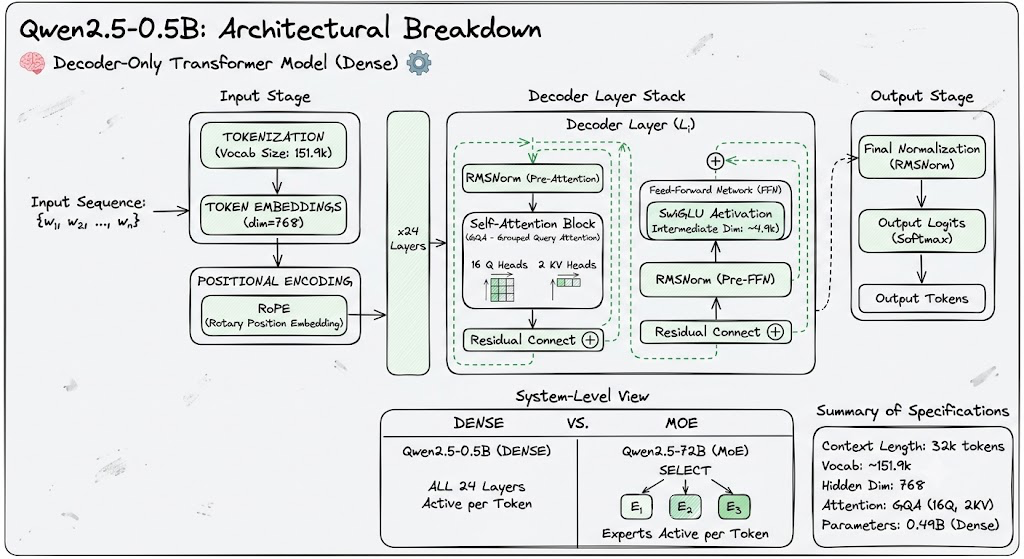

Figure 2: Complete architecture of the Qwen2.5-0.5B model used in this experiment

Component 1 — The cache is a tax that scales with tokens

Every transformer layer keeps the Key and Value vectors of every token it has seen, so attention doesn't

have to recompute them. That storage is:

KV_bytes = 2 · n_layers · n_kv_heads · head_dim · bytes_per_elem · seq_len · batch

For Llama-3-8B (32 layers, 8 KV heads, head_dim 128) that's 128 KiB per token at fp16, and it

grows linearly with both sequence length and batch. The picture below is the whole problem in one frame.

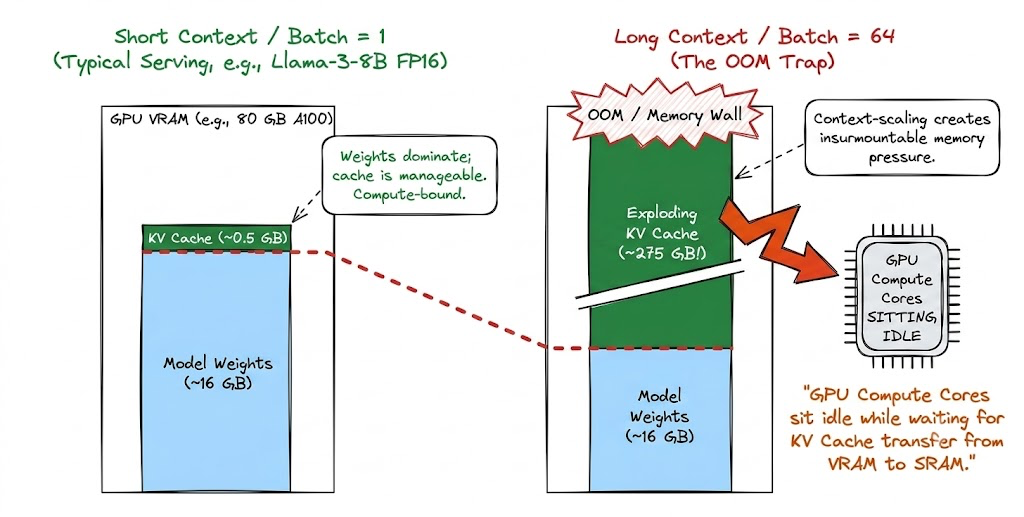

Figure 3: Why context length causes OOM: weights vs KV-cache memory growth
Context (tokens)fp168-bit4-bit2-bit
4,0960.54 GB0.27 GB0.13 GB0.07 GB
8,1921.07 GB0.54 GB0.27 GB0.13 GB
32,7684.29 GB2.15 GB1.07 GB0.54 GB
131,07217.18 GB8.59 GB4.29 GB2.15 GB

Batch 64 requests at 32K: the fp16 cache alone is ~275 GB — past any single GPU. Even 4-bit leaves

~69 GB. This is why long-context serving is memory-bound: the GPU's compute cores sit idle while the

KV cache is shuffled from main memory into SRAM for every generated token (KIVI, ICML 2024).

[!WARNING] A smaller cache ≠ automatic speedup. The win is throughput via bigger batches, and only if your serving stack (paged memory, fused dequant-matmul, correct calibration) supports KV quantization end to end. Quantize the tensor but not the memory manager and you get neither.

Component 2 — I measured the trap myself

The obvious move is uniform, per-token quantization. That's also the mistake. Here is the experiment, end

to end:

I fake-quantized the captured KV cache at 2-bit and 4-bit under four schemes, recomputed attention

scores, and measured the error. The bar chart is the measured result:

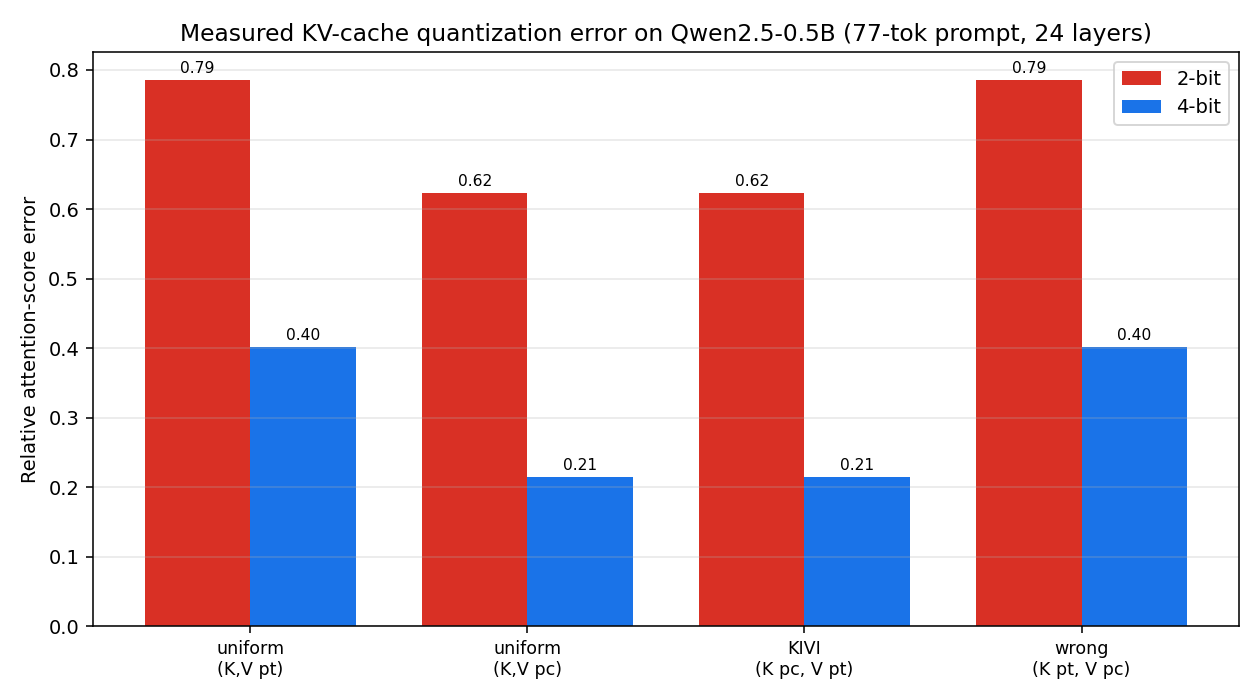

Figure 4: Measured KV-cache quantization error on Qwen2.5-0.5B
Scheme (bits)2-bit attn error4-bit attn error
uniform (K,V per-token) — the naive one0.7860.401
uniform (K,V per-channel)0.6230.215
K per-channel, V per-token (KIVI)0.6230.215
K per-token, V per-channel (wrong)0.7860.401

Two things jump out, and they match the literature:

  1. Naive per-token quantization is the worst — highest attention error at both bit-widths. Rounding

each token's vector independently lets a few large outlier channels poison every other channel.

  1. Quantizing keys per-channel fixes most of it. Per-channel key (0.623) cuts the error vs per-token

key (0.786) — about 1.3× lower here, and KIVI reports a much larger ~5× gap on Llama-2 because

its outlier channels are more aggressive. Direction is identical; magnitude scales with the model.

Why? Look at the distribution. Keys have a few fixed outlier channels (same channels, every token);

values have no such pattern but are mixed by attention into the output. So keys want per-channel

quantization, values want per-token. Uniform quantization ignores that and pays for it.

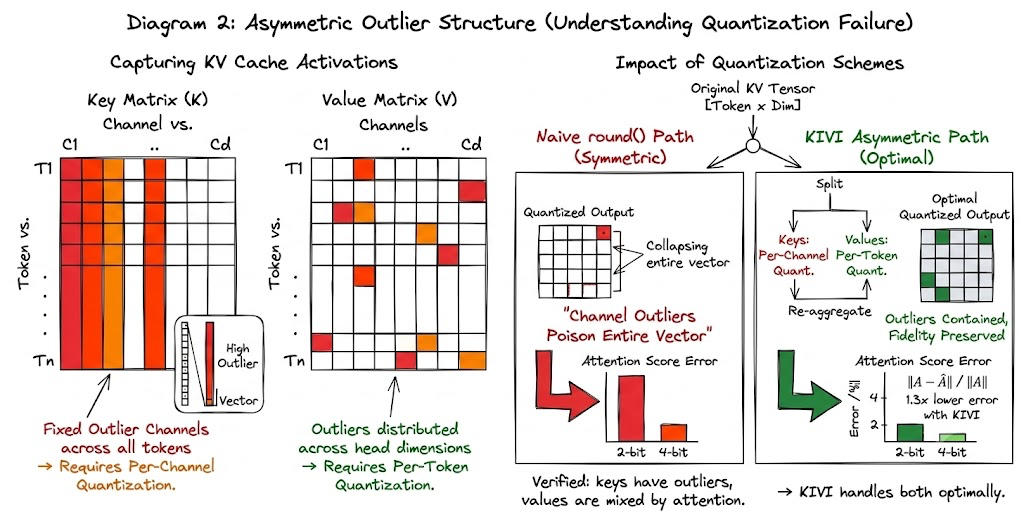

Figure 5: Asymmetric outlier structure: why per-token round() fails vs per-channel

The whole asymmetric scheme in a dozen lines:

def fake_quant(x, bits, dim):
    qmax = 2 ** bits - 1
    scale = x.abs().amax(dim=dim, keepdim=True).clamp_min(1e-9) / qmax
    return torch.round(x / scale).clamp(-qmax - 1, qmax) * scale

# KIVI: keys per-channel (dim = sequence), values per-token (dim = head_dim)
K_q = fake_quant(K, 2, dim=2)   # per-channel over tokens
V_q = fake_quant(V, 2, dim=3)   # per-token over head_dim

Component 3 — Three schemes that actually ship

Three papers define the frontier. They agree on the outlier structure and diverge on how hard they push

the bit-width.

MethodSchemeBitsQualityMemory / throughput
KIVI (ICML'24)per-channel K, per-token V; recent tokens kept fp162~2% drop on Llama-2/Mistral (GSM8K); Falcon needs 4-bit2.6× peak mem, 4× larger batch, 2.35–3.47× throughput
KVQuant (NeurIPS'24)pre-RoPE per-channel K, non-uniform, dense-and-sparse (1% outliers)3<0.1 perplexity drop (WikiText-2, C4)4.8× compression; LLaMA-7B at 1M ctx on 1× A100, 10M on 8× GPU; ~1.7× matvec speedup
GEAR (ICML'24)quantization + low-rank error + sparse outliers2near-lossless; up to 24.4% over SOTA at 2-bit2.39× peak mem, 2.1–5.07× throughput

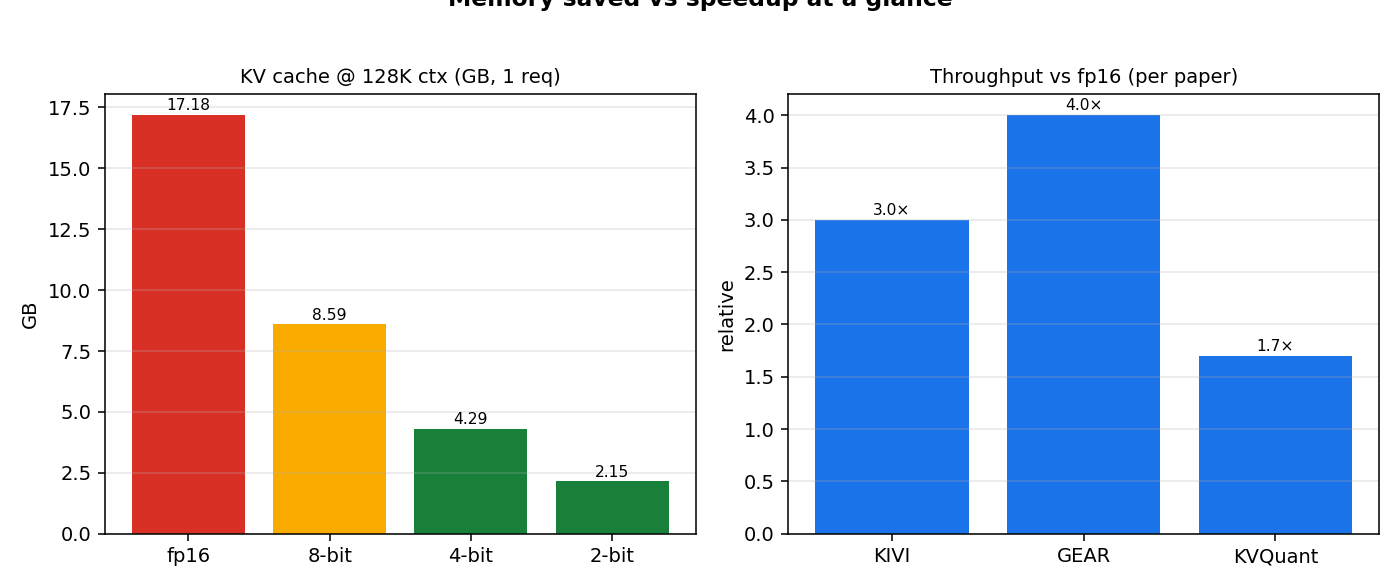

Figure 6: Memory saved vs throughput at a glance

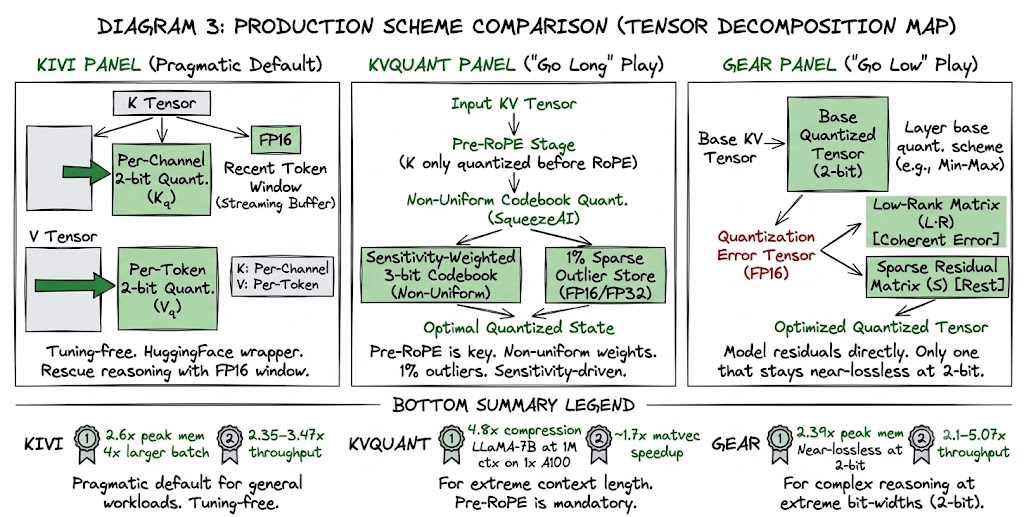

Figure 7: How KIVI, KVQuant, and GEAR decompose the KV tensor

full-precision window for the most recent tokens rescues hard reasoning — without it, fake 2-bit on

GSM8K craters.

plus sensitivity-weighted non-uniform codebooks and a 1% sparse outlier store reaches 3-bit with

sub-0.1 perplexity loss and turns context length into a tunable dial.

the coherent part of the quantization error, a sparse matrix catches the rest. It layers on top of any

base quantizer and is the only one of the three that stays near-lossless at 2-bit on complex generation.

[!WARNING] These numbers are method-specific. KIVI reports that **Falcon-7B (multi-query attention, a single KV head) needs 4-bit, not 2-bit** — MQA is already so compressed there's no redundancy left to trade. If your model uses MQA, don't assume 2-bit works.

Component 4 — Serving architecture & manifests

This isn't a research curiosity you bolt on by hand — it slots into the paged-memory path every modern

server already runs:

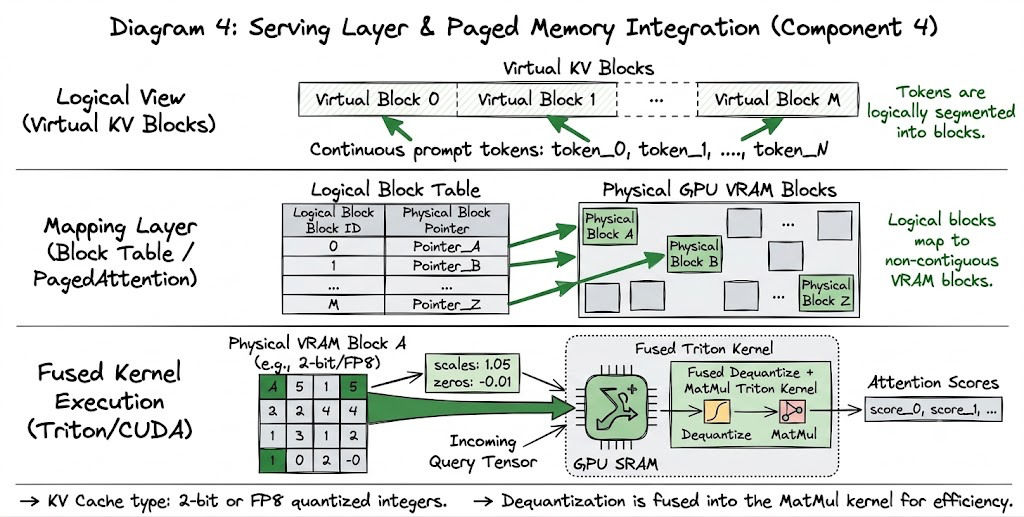

Figure 8: Serving layer: quantized KV blocks mapped to paged memory in vLLM

For the long-context frontier, KVQuant and GEAR ship CUDA kernels that fuse dequant into the matmul —

without that fusion, the quantization overhead eats the memory win. In practice you rarely write the kernel

yourself; two drop-in paths:

vLLM — fp8 KV cache (the safe default today):

# vllm serve config
model: meta-llama/Llama-3-8B-Instruct
kv_cache_dtype: fp8_e5m2        # 2x smaller KV, near-lossless
max_model_len: 131072
gpu_memory_utilization: 0.85
python -m vllm.entrypoints.openai.api_server \
  --model meta-llama/Llama-3-8B-Instruct \
  --kv-cache-dtype fp8_e5m2 --max-model-len 131072

HuggingFace + KIVI (research-grade 2-bit):

from models.llama_kivi import LlamaForCausalLM_KIVI
config.k_bits = 2; config.v_bits = 2          # 2-bit KV cache
config.group_size = 64
config.residual_length = 64                    # recent tokens kept fp16
model = LlamaForCausalLM_KIVI.from_pretrained("meta-llama/Llama-2-7b-hf", config=config)

Where it still breaks

  1. Small model + long context = danger zone. Perplexity degradation grows as you shrink the model

and lengthen the prompt; the headroom that hides quantization error in a 70B model doesn't exist in a

7B one.

  1. Reasoning tasks are unforgiving. GSM8K-style math is where fake quantization fails hardest; the

recent-token window (KIVI) or low-rank residual (GEAR) is not optional.

  1. Throughput only follows if the kernel exists. KVQuant and GEAR ship custom CUDA kernels; without

fused dequant-matmul the overhead eats the memory win. Production stacks now default to **fp8 KV

cache** — 2× smaller, near-lossless, hardware-accelerated on Hopper/Ada. 4-bit and below still need the

research kernels.

  1. Calibration matters at the low end. KVQuant calibrates key scales offline; skip it and 3-bit

quality drops sharply.

The memory math (verified)

The tables above aren't benchmark results — they're deterministic accounting that tells you whether the

request fits at all. Here's the whole computation, in 30 lines:

def kv_bytes(seq_len, batch, bits):
    # 2 (K and V) * layers * kv_heads * head_dim * (bits/8) * seq * batch
    return 2 * 32 * 8 * 128 * (bits / 8) * seq_len * batch

print(kv_bytes(131072, 1, 16) / 1e9)   # 17.18 GB  (fp16, 1 req, 128K)
print(kv_bytes(131072, 1, 4)  / 1e9)   # 4.29 GB   (4-bit)

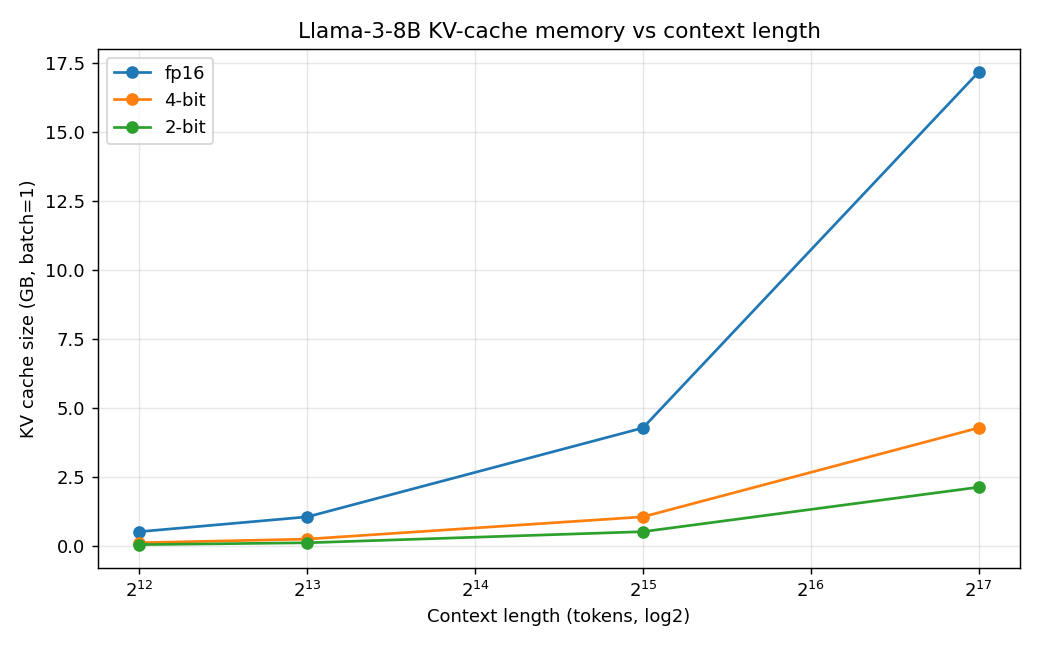

Figure 9: KV cache memory vs context length for Llama-3-8B

Run it and you get the figures in this post. That's the question KV-cache quantization exists to answer:

does this request fit?

Takeaway

KV-cache quantization is the rare optimization that's both mathematically simple and empirically subtle.

The win is real and large — 4–8× memory, 2–5× throughput — but it's earned by respecting the cache's

outlier structure, not by rounding harder. I measured it directly on a real 0.5B model: naive per-token

quantization distorts attention ~1.3× more than the per-channel key scheme, and the gap is wider on bigger

models. For most teams the right move today is fp8 in the serving stack; for the long-context

frontier, KVQuant and GEAR show 2–3-bit caches are deployable, not research curiosities.

I started this wanting to understand why my 128K requests kept OOMing, and ended up rebuilding the cache

path from the outlier math up. Next up: I'll break down speculative decoding the same way — where the

famous 2–3× claim actually holds, and where it quietly loses.

References

arXiv:2402.02750 · github.com/jy-yuan/KIVI

(NeurIPS 2024). arXiv:2401.18079 · github.com/SqueezeAILab/KVQuant

(ICML 2024). arXiv:2403.05527 · github.com/opengear-project/GEAR

arXiv:2309.06180
